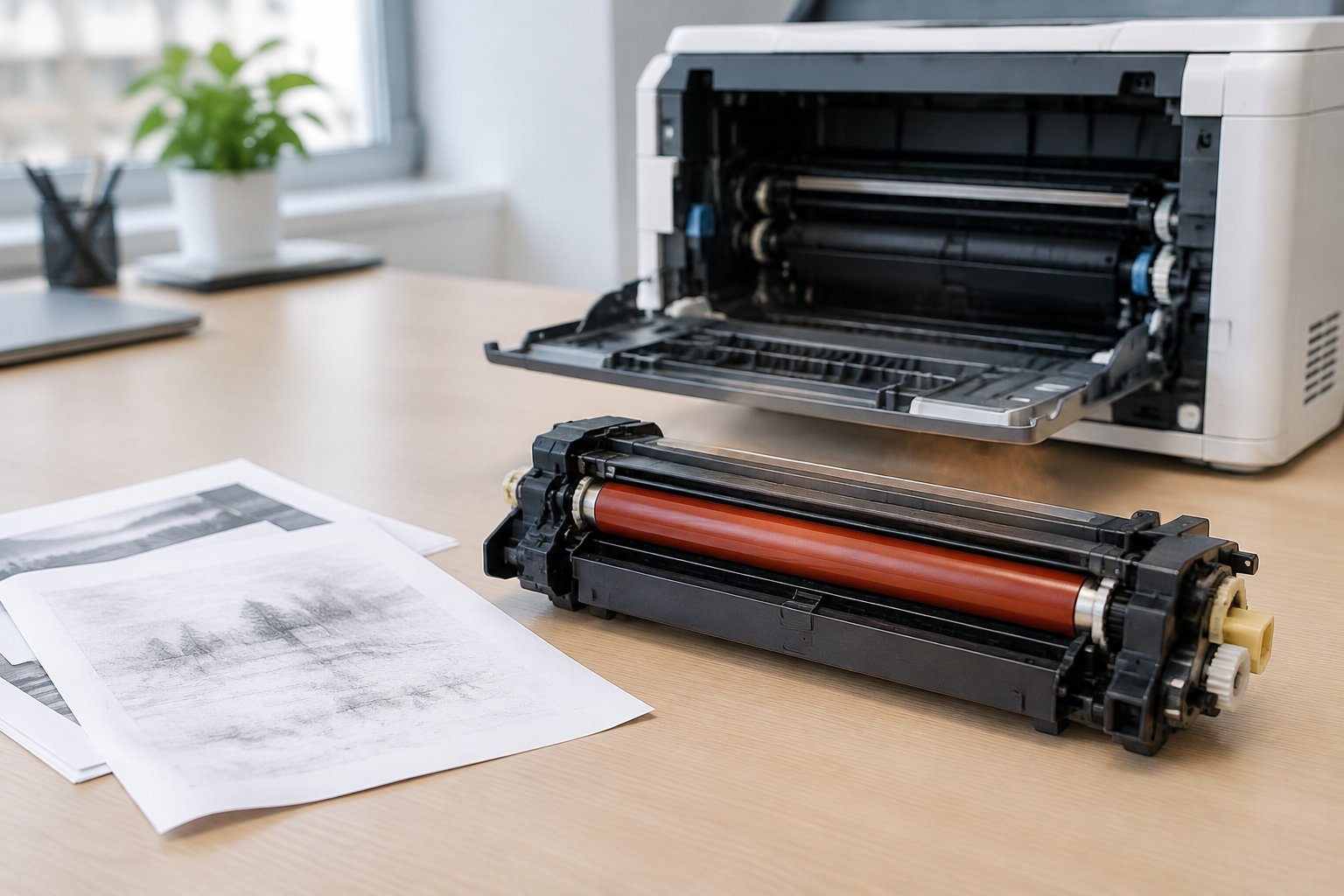

A fuser is the heated assembly near the exit of every laser printer and copier. It melts the toner powder and presses it into the paper so the image becomes permanent. Pages that smudge when you touch them, come out wrinkled, or trigger a “fuser error” on the screen are the classic signs that this part is wearing out.

Most people never think about the fuser until something goes wrong with it, and then it gets blamed for everything. Some of those problems really are the fuser. Others come from paper, settings or a different part entirely. This guide explains what the fuser does, how to read its warning signs, what you can safely check on your own and what a replacement involves, so you can describe the problem clearly and avoid paying for the wrong fix.

How Does a Fuser Work?

By the time a sheet reaches the fuser, the image is already on the page, but only as loose powder held in place by static. You could blow half of it away. The fuser’s job is to turn that loose powder into a finished print in the fraction of a second it takes the sheet to pass through.

It does that with two things working together:

Heat from a heated roller or a thin heated film softens the plastic particles in the toner.
Pressure from a rubber-coated pressure roller squeezes the softened toner into the paper fibers.

As the page leaves the printer and cools, the toner hardens and locks in. That is why a fresh stack in the output tray feels warm and sometimes slightly curved.

Roller fusers and film fusers

You will run into two main designs. Larger and older office machines often use a hard heated roller with a heat lamp inside it. Many newer printers use a flexible film sleeve wrapped around a ceramic heater, which warms up in seconds and helps the printer wake from sleep quickly. Both designs rely on smooth, clean surfaces and an even squeeze across the full width of the page.

Why inkjets don’t have one

Inkjet printers spray liquid ink that soaks into the paper and dries by itself, so there is nothing to melt. If an inkjet page smears, look at the paper type and drying time. On a laser printer or copier, smearing that wipes off as dry powder is a much stronger hint that the fuser is involved.

A Note on Heat Safety

The fuser is the hottest part of your printer, and it stays hot for a while after printing stops. Fusers run at temperatures well above what is safe to touch, and the metal around them holds that heat. Most machines carry a yellow warning label on or near the fuser area for exactly this reason.

Before anyone reaches toward the back of a laser printer or into the exit area of a copier:

Turn the machine off and give it time to cool. Your manual will list how long; when in doubt, wait longer.
Only open the doors and levers your manual says are user-accessible.
Never use metal tools, scissors or letter openers to free paper near the fuser. You can scratch the roller or film and create a new problem.
If you smell burning, see smoke or find scorched paper, switch the device off at the power button, leave it off and call for service.

A faint warm smell, especially from a new machine, is normal. A strong, acrid burning odor is not.

What Are the Signs of a Failing Fuser?

Fuser problems usually show up in one of four ways. The table gives a quick read, and the sections below explain what to look for.

Symptom	What it suggests
Text smudges or leaves gray dust on your thumb	Not enough heat or uneven pressure
Faint repeat of the image lower on the page	Toner sticking to a worn fuser surface
Wrinkles, creases or heavy curl near the trailing edge	Worn rollers or uneven pressure
Fuser error code, or the printer stops warming up	Heating or sensor fault

The thumb test

Print a page with plenty of dark text, wait a few seconds and run your thumb firmly across it. If the text smears or leaves a gray film on your skin, the toner did not fully bond. When this happens only along one edge, or only on heavier paper like cardstock and envelopes, the fuser may be losing heat or pressure on part of its surface.

Ghosting at a regular spacing

When a fuser’s coating wears, a little toner can stick to it and get pressed onto the paper again one rotation later. You see a pale echo of a heading or logo further down the page. Because the drum and other rollers can cause similar echoes, a technician will measure the spacing to confirm which part is responsible.

Wrinkles, curl and jams at the exit

A healthy fuser feeds paper out flat. A tired one can crease sheets, wrinkle envelopes or curl pages so tightly they roll up in the tray. If paper starts wrapping around a roller or jamming right as it leaves the machine, the fuser area is a likely suspect.

Error codes and slow warm-up

Fusers have temperature sensors. If the fuser heats too slowly, overheats or loses contact with its heater, the printer stops and shows an error. The wording differs by manufacturer, but it often mentions the fuser or a heating fault. Take a photo of the screen so you have the exact code.

What Can You Check Before Calling for Service?

A good share of “fuser problems” turn out to be paper problems. These checks take a few minutes and don’t involve opening anything hot.

Match the paper setting to the paper. Heavier paper needs more heat. If the tray holds cardstock but the printer thinks it is plain paper, toner may not bond. Set the correct paper type on the control panel and in the print dialog.
Try a fresh ream. Paper that has absorbed moisture curls and wrinkles more easily. Load paper from an unopened ream and print a few pages.
Check the media is laser-safe. Some glossy, coated or label stock is made for inkjets and can melt or smear in a fuser.
Restart once. Turn the printer off, let it cool fully and turn it back on. A one-time fuser error sometimes clears this way. If it returns, stop there.
Save sample pages. Keep two or three bad prints and note which tray they came from. They help a technician confirm the cause quickly.

Not sure whether it’s the fuser or a setting? Our remote support team can connect to the computer you print from, check the paper and driver settings with you, and help you decide whether a visit is needed. For hands-on diagnosis, call 719.630.8600 and we will get a technician scheduled.

What Does Fuser Replacement Involve?

A fuser is a wear part, like the brake pads on a car. Manufacturers rate each fuser for a certain number of pages and expect it to be replaced during the life of the printer. Many models show a “replace fuser” or “maintenance kit” message as the page count gets close, and some bundle the fuser with feed rollers in a kit so both are replaced together.

On some small desktop laser printers, the fuser is a slide-out module that a careful user can swap after the printer cools. On most office copiers and multifunction devices, replacement means removing panels, handling electrical connectors and resetting counters, which is work for a trained technician (more on that in our guide to copier service and repair). Installing a fuser incorrectly can damage the new part or the machine.

A technician also confirms that the fuser is the real cause before replacing it. Wrinkles can start at worn feed rollers, and echoes can come from the drum, so a quick diagnosis can save you from buying a part you didn’t need. If your printer is older and needs several parts at once, it may be worth weighing whether to repair or replace the printer instead.

Cost depends on the model, whether the fuser is sold alone or as part of a kit, and how much of the machine needs to come apart. If your copier is on a service agreement, check whether wear parts like the fuser are included.

Keep the Heat Where It Belongs

Most fuser trouble is easier and cheaper to handle when it is caught at the first smudge or warning message, rather than after the printer starts eating paper on a busy afternoon. Our laser printer repair technicians replace and test fusers on office printers and copiers across Colorado Springs, Pueblo and Southern Colorado.

Axis has been keeping local offices printing since 1978. Every technician who walks through your door works for us directly, and we carry parts locally, so a failed fuser is usually a same-day fix rather than a week of waiting. Our customers rate that experience at 98.8% satisfaction.

Seeing smudges, wrinkles or a fuser error? Talk with our team at 719.630.8600 in Colorado Springs or 719.543.8600 in Pueblo, or request a quote for printer service and we will help you get clean pages again.

Frequently Asked Questions

Why does my printer take longer to wake up than it used to?

The fuser has to reach operating temperature before the first page prints. A fuser or heater that is starting to fail can take longer to get there, so a noticeably slower first page can be an early warning worth mentioning to your technician.

Can a fuser cause blank or very light pages?

Rarely. Blank or faint pages usually point to toner, the drum or the laser unit. The fuser’s job comes after the image is on the page, so its failures tend to show as smearing, wrinkles or error codes rather than missing print.

Is it safe to keep printing with a fuser warning?

A “fuser life low” or maintenance message is a reminder to plan a replacement, and the printer usually keeps working normally for a while. An actual fuser error, burning smell or scorched page is different: stop printing and have it checked.

Does printing envelopes and labels wear the fuser faster?

It can. Thick or uneven media puts more stress on the rollers, and adhesive from labels not rated for laser printers can stick to the fuser surface. Use media made for laser printers and feed it through the tray your manual recommends.
